Launch Angle and Velocity in Basketball Shooting

Entry angle gets all the attention. It's the number on the wall at every shooting facility, the one coaches quote and players chase. But it's also the one number a shooter can't actually control. The two they can — launch angle and release speed — are where every make, and every miss, really comes from.

The metric everyone watches is the one you can't pull

The appeal of entry angle is obvious. A steeper ball "sees" more of the rim, so it has a larger margin for error, and the research points to roughly 43–47 degrees as the window for high-probability shots. So it's easy to treat that number as a target — to look at a flat entry angle and tell a player, "get more arc."

Here's the catch: a player never sets their entry angle. Entry angle is an output. What a shooter actually controls is the launch angle and the release velocity — and, along with release height, those are what decide the entry angle the ball happens to arrive at. Coaching to entry angle alone is like diagnosing an illness from the fever: it tells you something is off, but nothing about the cause.

What a shooter actually controls

Start with the launch angle a player needs. Hold release velocity constant at 20 ft/s and release height at 7 feet, and the required launch angle changes a lot just with distance:

• Free throw — 15 ft out, 7 ft release: launch angle 55.2°.
• NBA three — 23.75 ft out, 7 ft release: launch angle 64.1°.

Now change the shooter, not the shot. Raise the release height to 8.5 feet — a taller player, or a higher release — and the same two shots need less launch angle:

• Free throw, 8.5 ft release: 52.6° (down from 55.2°).
• NBA three, 8.5 ft release: 63.1° (down from 64.1°).

That's the whole point in miniature: a taller player needs a lower launch angle to produce the same result at the rim. Judge two players by entry angle alone and you'd never see it — you'd be comparing outputs and missing the inputs that got them there.

The make window: why arc and speed can't be separated

There isn't one "correct" launch angle either. Open the velocity up to a realistic range (15–25 ft/s) and a whole set of launch-angle/speed combinations will make the same shot. The flexibility shrinks as the shot gets longer:

• 6-ft player, free throw: launch angles 47–55° across 15–25 ft/s all go in.
• 7-ft player, free throw: a slightly lower band, 46–53°.
• 6-ft player, NBA three: the window tightens hard to 63–65°.
• 7-ft player, NBA three: 62–64° — barely any room.

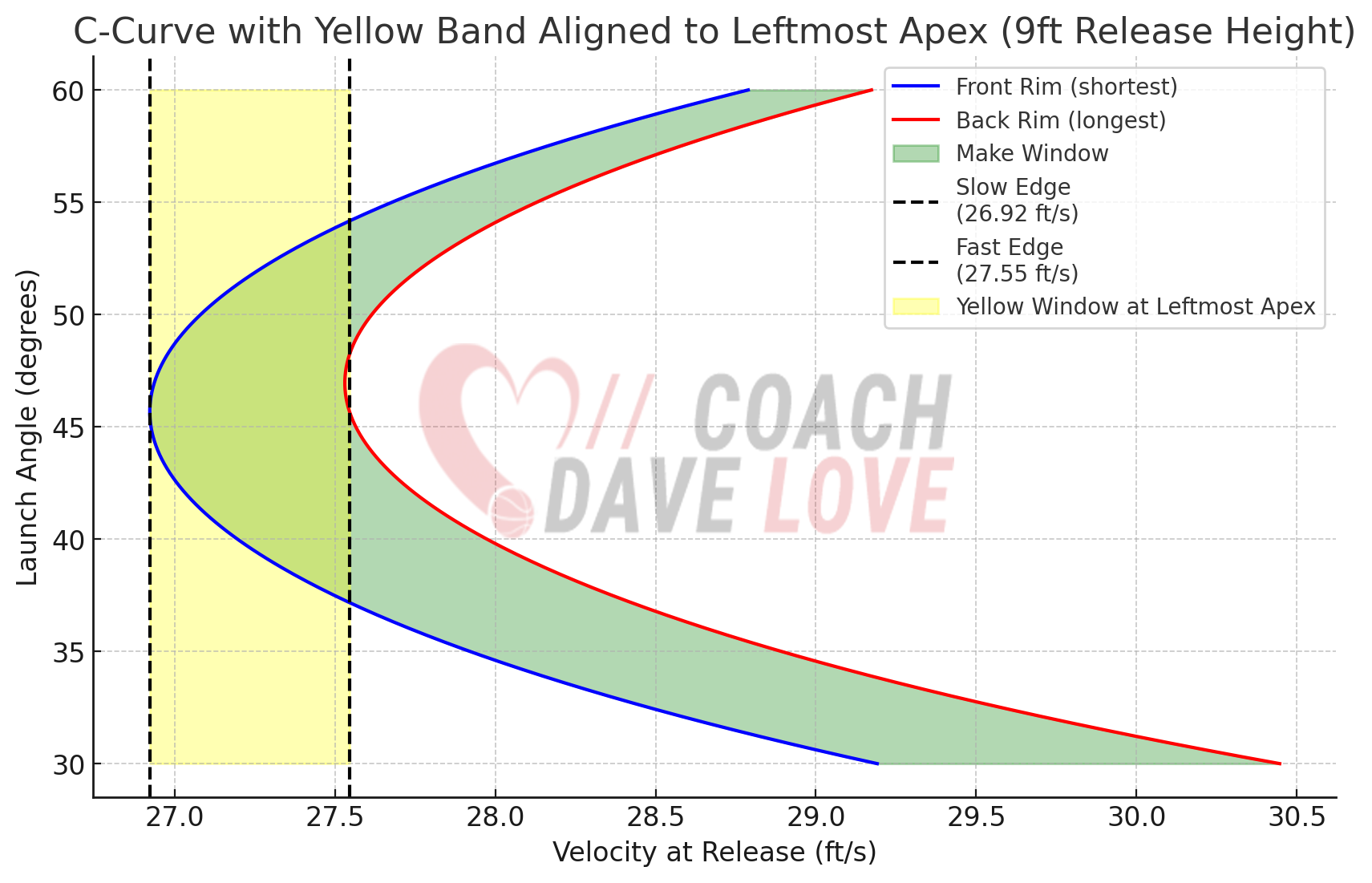

Map every arc-and-speed combination that goes the right distance and the answer isn't a single point, or even a line — it's a curve. In the chart below, the blue line is the minimum velocity needed to clear the front rim, the red line is the maximum before the ball hits the back rim, and the green band between them is the make window: every combination of arc and speed that sends the ball the correct distance.


Push the launch angle above ~46° and you have to add speed — but the window narrows. Drop below ~45° and you still have to add speed, and the window narrows again. The yellow band near the top of the curve is the sweet spot: the arc-and-speed combinations that leave a shooter the most margin for small errors and still go in.

One more layer: entry angle isn't launch angle

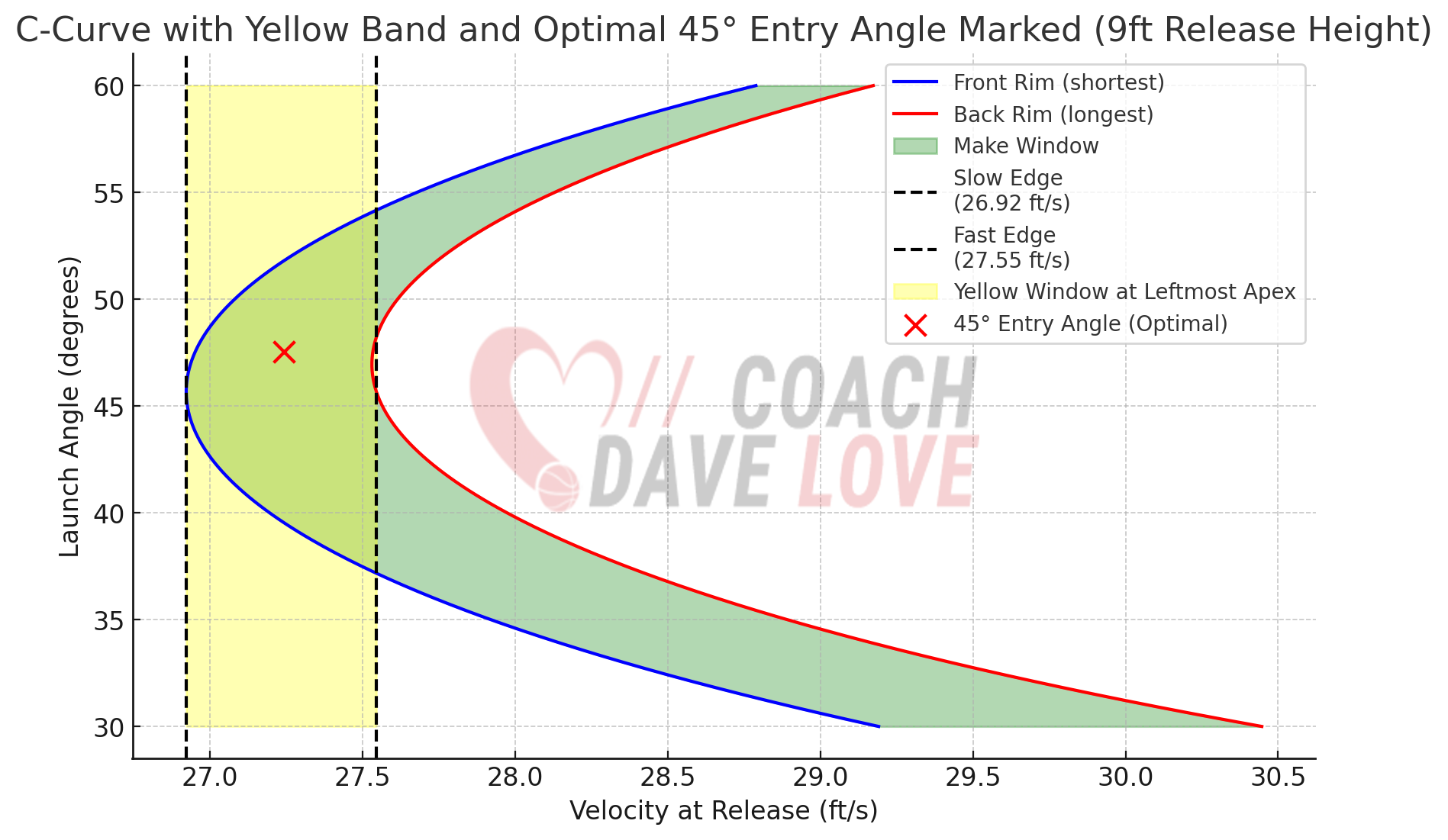

It's tempting to say the best shot sits dead-center in that green-and-yellow zone — for this example, around a 45–46° launch angle at roughly 27 ft/s. But that forgets the nuance we started with: the entry angle is not the launch angle. Once you require the ball to arrive near the ideal 45° entry, the optimal launch angle for this shot is actually closer to 48°.


That's the spot that balances everything at once — margin for error, the rim area the ball sees, and distance control. It's a layer of the trajectory most coaches never account for, and it only shows up when you look at launch angle and velocity together instead of the single number at the rim.

Touch, finally measurable

Here's where this stops being physics and starts being coaching. "Touch" has always been one of those words we attach to a player anecdotally — they either have it or they don't. But once you understand the make window, touch has a definition: it's a player's ability to adjust arc and speed in harmony, based on distance, release height, and situation, to keep the ball inside that forgiving green-and-yellow zone.

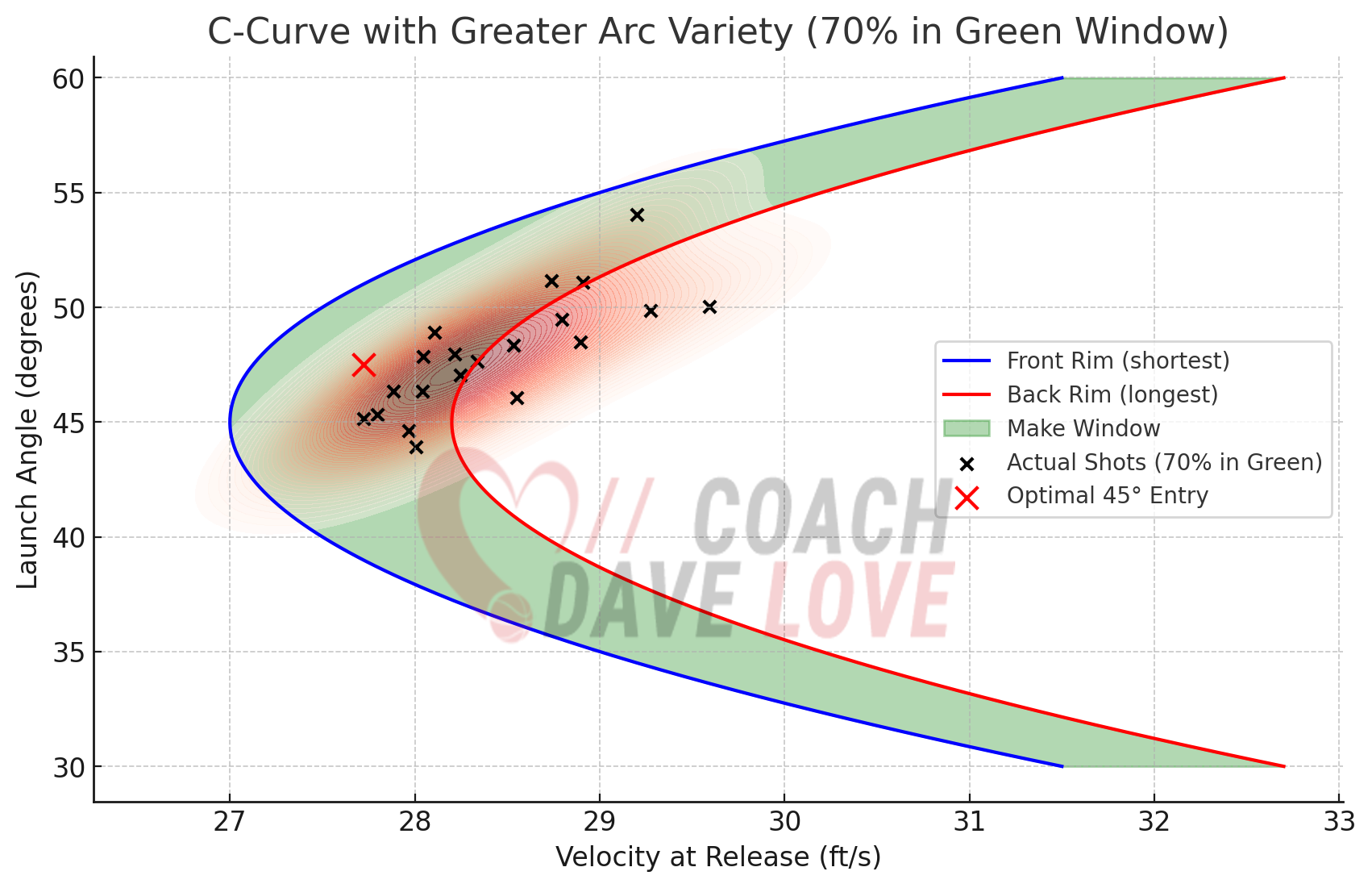

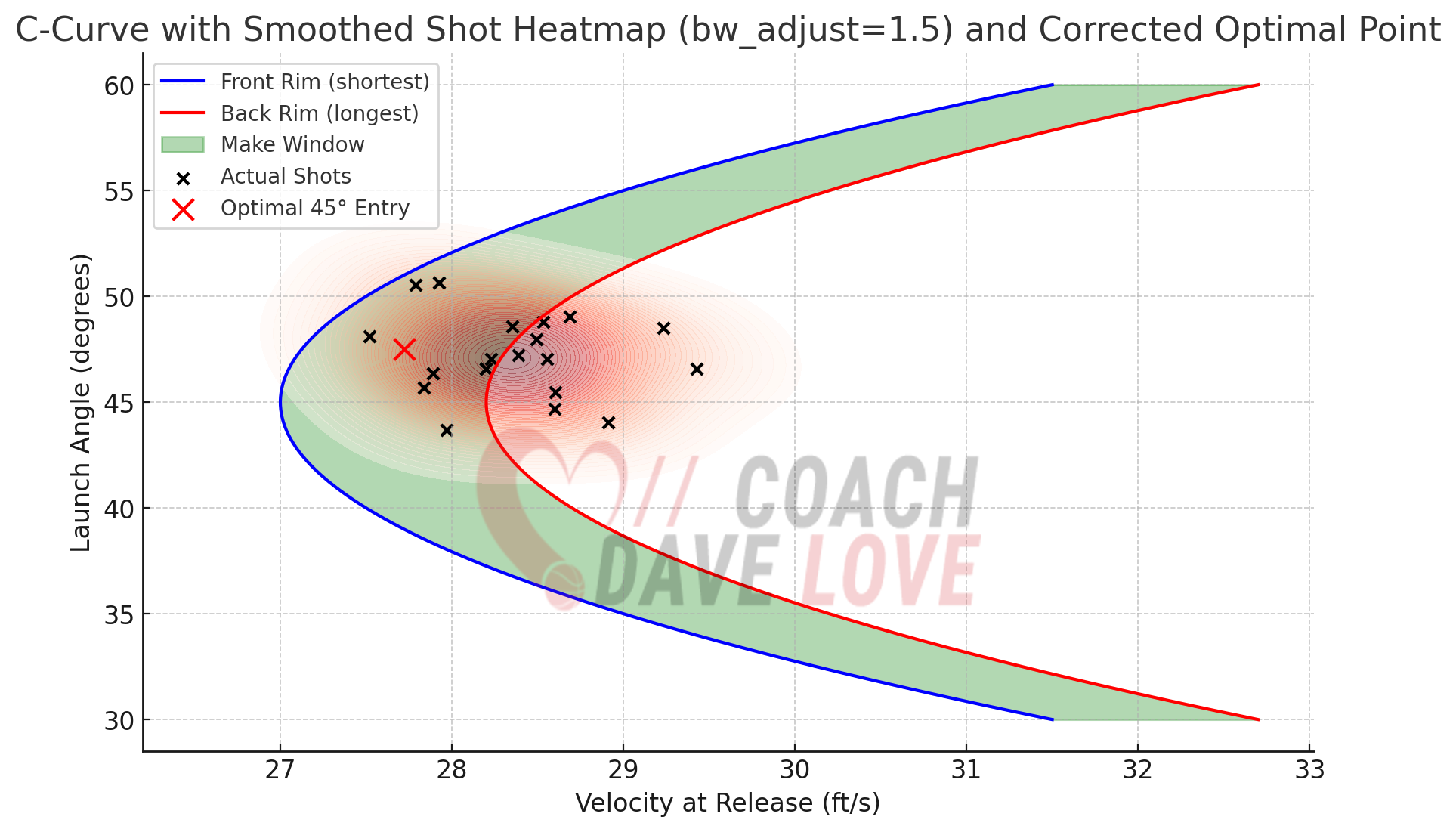

And now we can see it in the pattern of a player's misses. Map enough shots and profiles emerge:

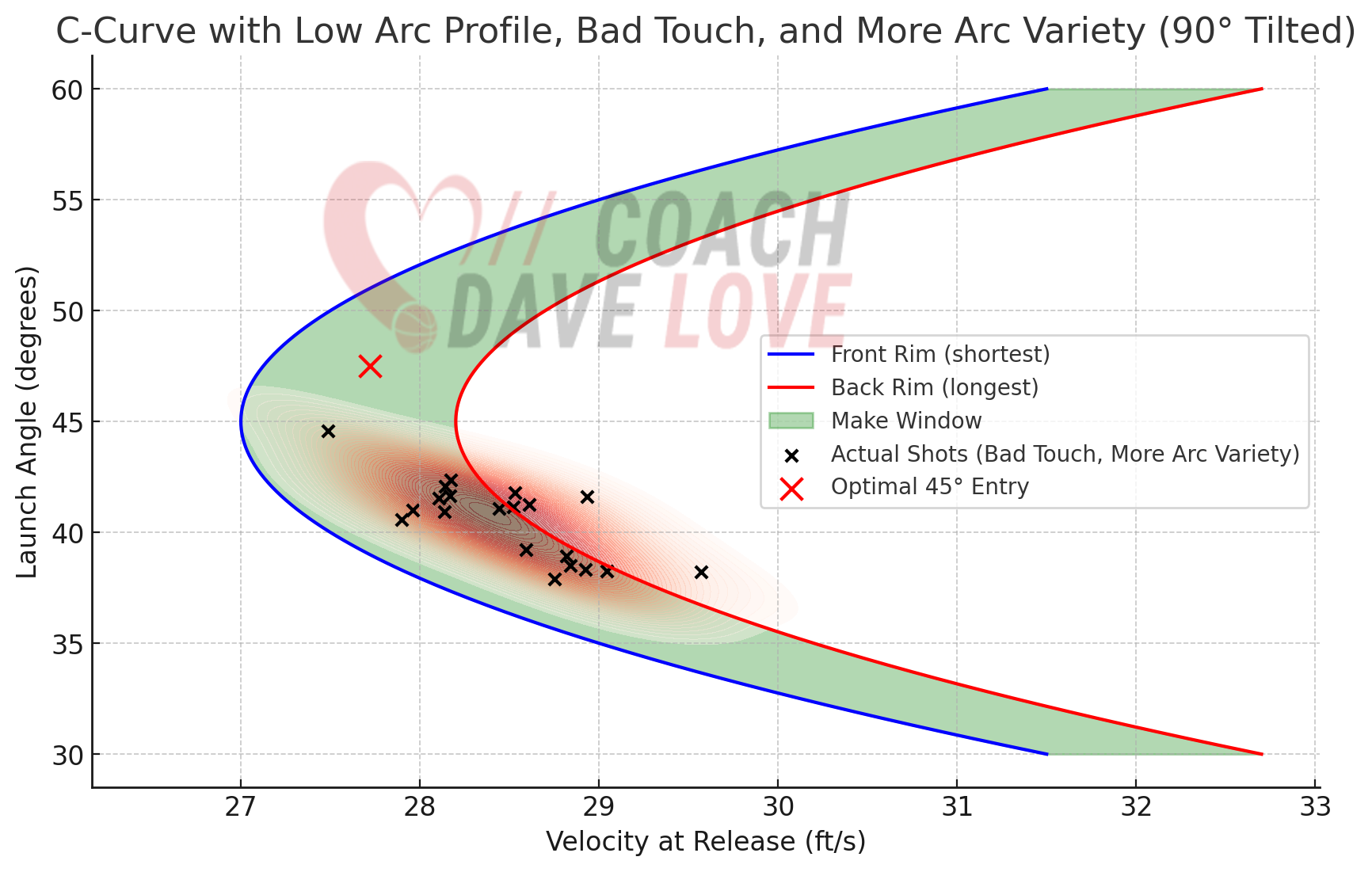

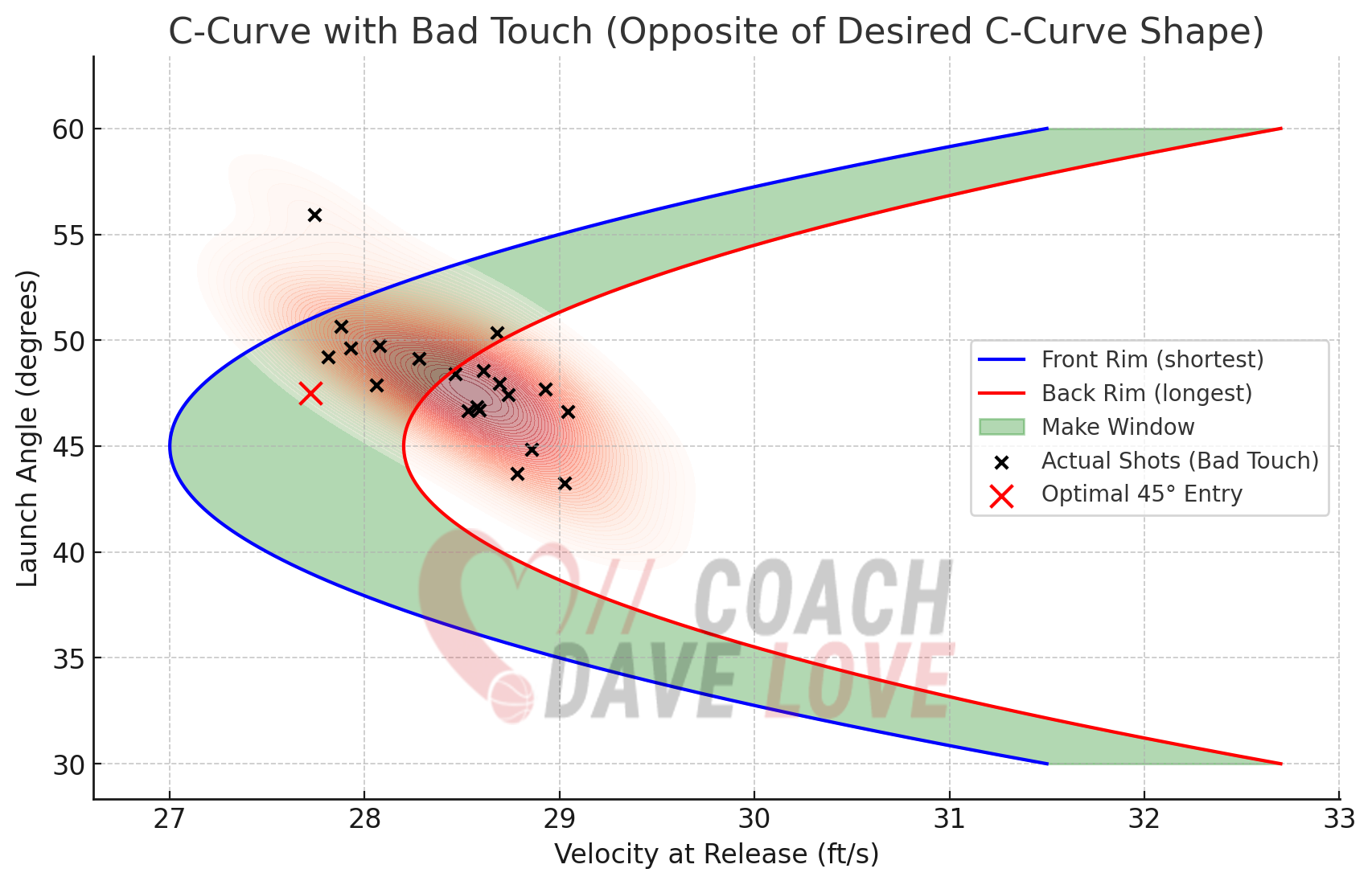

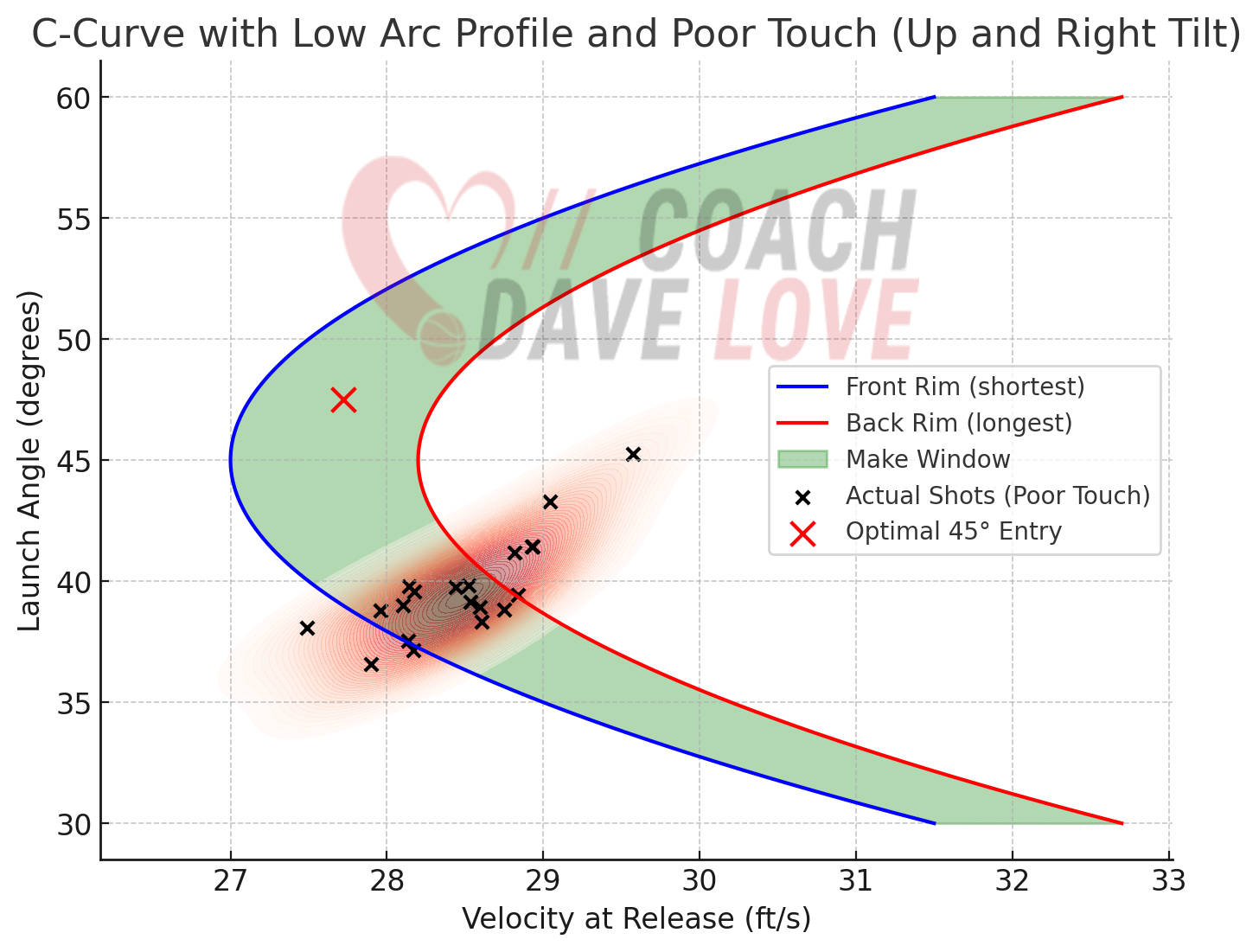

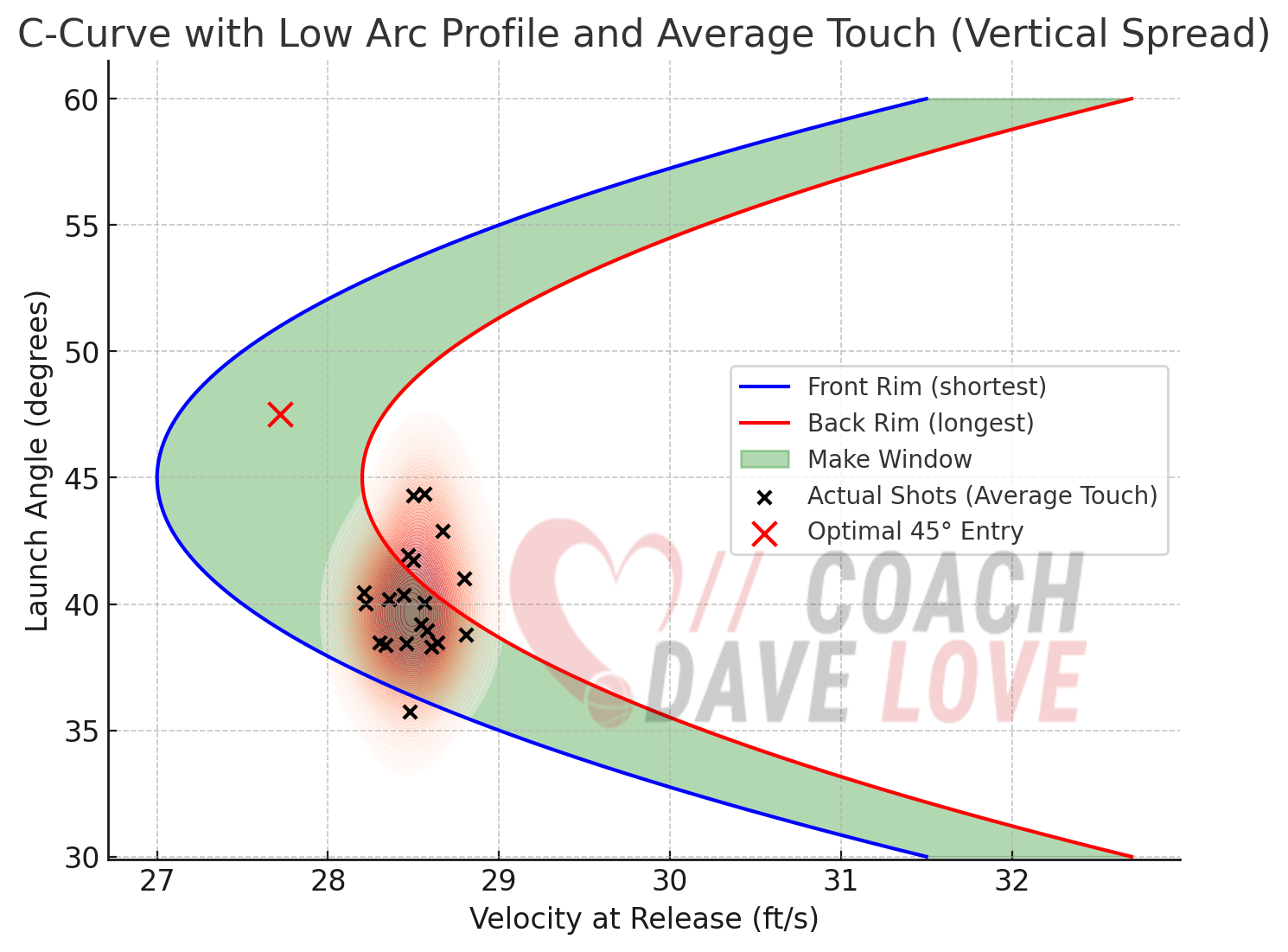

One player shoots a good arc and tends to miss long, because their speed fluctuates more than their arc — the touch problem is velocity, not angle. Another controls speed beautifully but shoots too flat, so their margin for error is small to begin with. Same word, "touch," two completely different fixes — and you only know which is which because you measured both.

Real touch shows up under adaptation. If a player has to shoot a little higher to clear a defender's hand and they normally have good arc, they'd better add a little speed too. But a naturally flat shooter doing the same thing needs the opposite — shoot higher and they have to slow the ball down, or it sails long. The players who make those trades instinctively are the ones we've always called "touch" shooters. Now we can watch them do it.

Coach with more data, not more arc

This is why more data beats a single number every time. Picture a player who keeps missing short, and all you have is an entry angle stuck around 41°. The reflex is "get more arc." But add launch angle and velocity and the real story might be that the launch angle is fine (say 51°) and the speed is the culprit — 17 ft/s where the shot needs 20. Tell that player to add arc and you've aimed them at the wrong fix.

With arc and speed in hand, the diagnosis gets specific:

• Launch angle too low → it's a mechanics conversation about the shape of the shot.
• Velocity too slow → it's a power conversation, not an arc one.
• Both in range but the ball still misses → look at release timing and the arc-to-speed trade, not the angle in isolation.

The bottom line

Entry angle is worth knowing — it can tell you something is wrong. It just can't tell you what to change, because it isn't a thing your player does. Launch angle and release velocity are, and it's the relationship between them that separates a shot that goes in from one that doesn't — and a shooter who adapts from one who breaks down.

So the next time a player misses short, resist "more arc." Ask the two questions that actually point at a fix: what launch angle are they using, and how fast is the ball leaving their hand? In shooting, as in most things, it isn't just where the ball ends up — it's how it got there.
